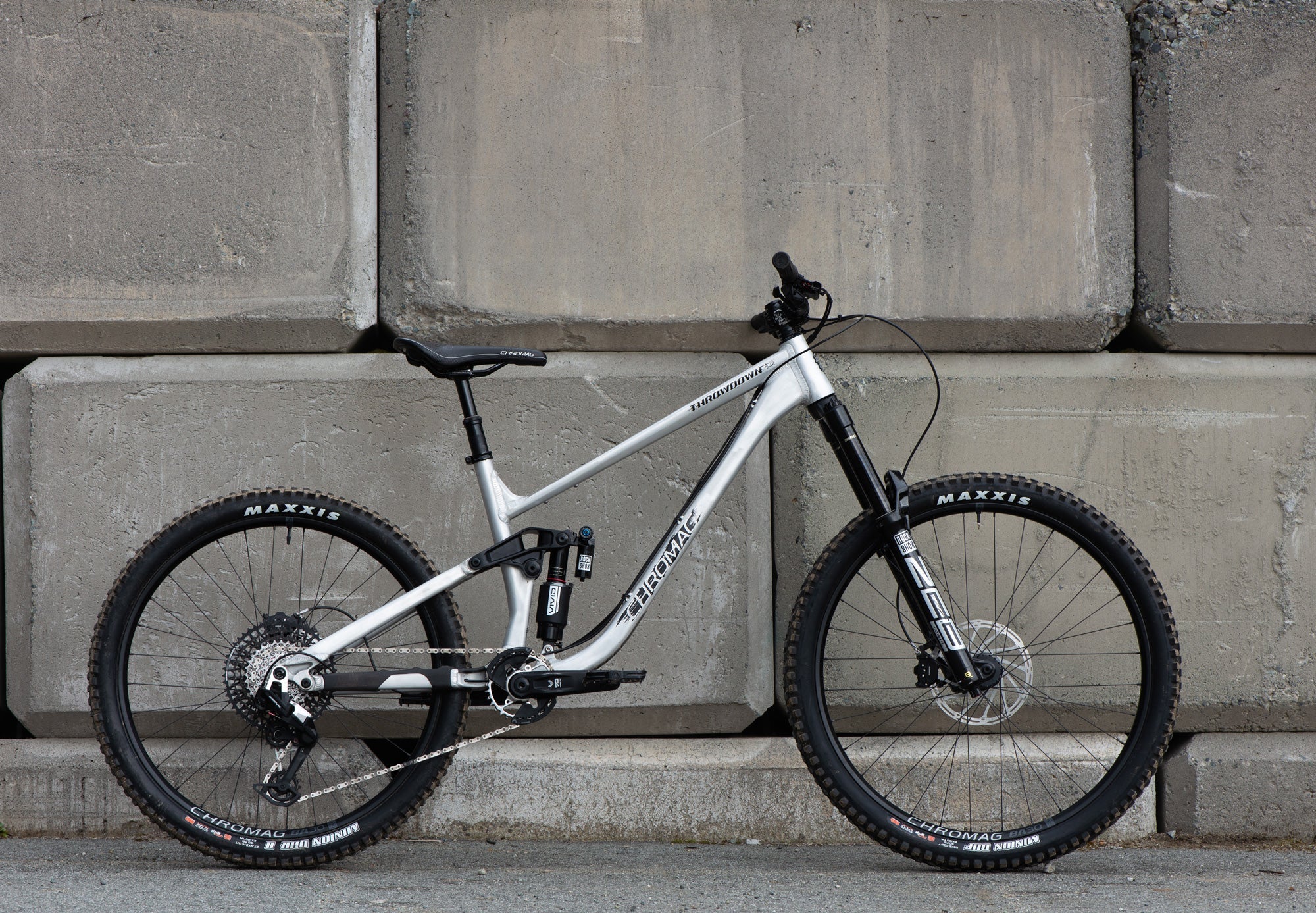

With 170 mm of rear travel and a mixed-wheel configuration, the Throwdown is built for riders who head straight into the chaos: steep chutes, blown-out corners, deep landings, and natural lines that keep the suspension working. The smaller rear wheel allows more travel with a compact, reactive rear end, giving the bike a grounded, confident feel without sacrificing agility.

Built from premium 6066 alloy, the Throwdown is the first Chromag adult full-suspension frame made entirely from aluminum, carrying forward our trademark attention to detail in a new material with an emphasis on durability.

The suspension kinematics are tuned for predictability: supple off the top, supportive through the midstroke, and progressive enough to handle deep landings. Anti-squat reduces through the travel to limit feedback, while consistent anti-rise values maintain traction and stability under power and braking.

While the Throwdown is designed for rowdy terrain, it also climbs well. Supportive pedaling and balanced geometry make it a capable all-day partner for riders who prefer to take the long way up before dropping in.

The Throwdown is our first all-aluminium adult bike (we have made several versions of the Minor Threat). We chose a more conventional construction for this model based on the needs of its target rider.

Aluminium doesn't rust like steel, so it handles scratches and the general abuse of bike parks and shuttle laps well. It also allows the use of larger tube diameters to increase stiffness without adding a weight penalty or becoming as dent-prone as thin-wall steel tubes of similar size.

The rocker is made from forged aluminium because it offers a strong strength-to-weight ratio and can be machined efficiently.

Specifications

Fork	Rock Shox™ ZEB Select+ 170mm, 15x110mm, 44mm, 0/4 Tokens
Shock	Rock Shox™ Vivid Ultimate 205x65mm, R55C37 Tune, 2 Tokens
Stem	Chromag HiFi BSX 35mm Black
Handlebar	Chromag OSX35 25mm Rise Black
Headset	Cane Creek 40
Crankset	SRAM™ Eagle 90 Crank Transmission 165mm, 30T
Brakes	SRAM™ Maven Bronze
Rotors	SRAM™ Centerline 2.0 200mm
Shifter	SRAM™ Eagle 90 Transmission
Cassette	SRAM™ Eagle 90 Transmission
Chain	SRAM™ GX Eagle 90 12-Speed T-Type
Derailleur	SRAM™ Eagle 90 Transmission
Bottom Bracket (BB)	DUB 73mm Threaded
Wheels	Chromag BA30v2 / R6
Tires	Maxxis DHF 2.5 / DHR 2.4 Double Down
Seatpost	OneUp V3 — S: 150mm, M: 180mm, M/L: 210mm, L: 210mm, XL: 240mm
Saddle	Chromag Trailmaster Black
Grips	Chromag Format Black

Frame Construction	6066 Aluminum
Rear Travel	170mm
Wheel Size	MX: 29" Front / 27.5" Rear
Rear Axle	180mm, M12 × 1.00mm, Boost 148 (Included)
Bottom Bracket (BB) Type	BSA 73mm Threaded
Headset	44–56mm
Linkage	Rocker Driven Horst Linkage
Shock Size	205 × 65mm Trunnion
Lower Shock Hardware	20 × 8mm
Derailleur Hanger	SRAM™ UDH™
Recommended Fork Offset	44mm
Recommended Fork Travel	170mm
Seatpost Size	31.6mm
Seat Clamp Size	35mm
Bottle Cage Mount	Yes
Gear Mount	Yes
ISCG Mount	Yes
Brake Mount	180mm Post
Frame Weight	M/L: 9.9 lbs (with shock, axle, hanger, chainstay protector)
Origin	Taiwan

Geometry

(mm unless noted)	S	M	M/L	L	XL
Stack	624	633	642	651	651
Reach	445	465	485	505	525
Effective Top Tube	576	599	621	643	663
Head Tube Length	105	105	115	125	125
Wheelbase	1224	1249	1273	1304	1324
BB Drop	22	22	22	22	22
BB Height	344	344	344	344	344
Standover Height	686	716	745	774	804
Chainstay Length	435	435	435	442	442
Seat Tube Length	350	380	410	440	470
Max Post Insertion*	180	210	240	270	300

Head Angle	63.5°
Seat Angle	78°
Wheel Size	MX: 29" Front / 27.5" Rear
