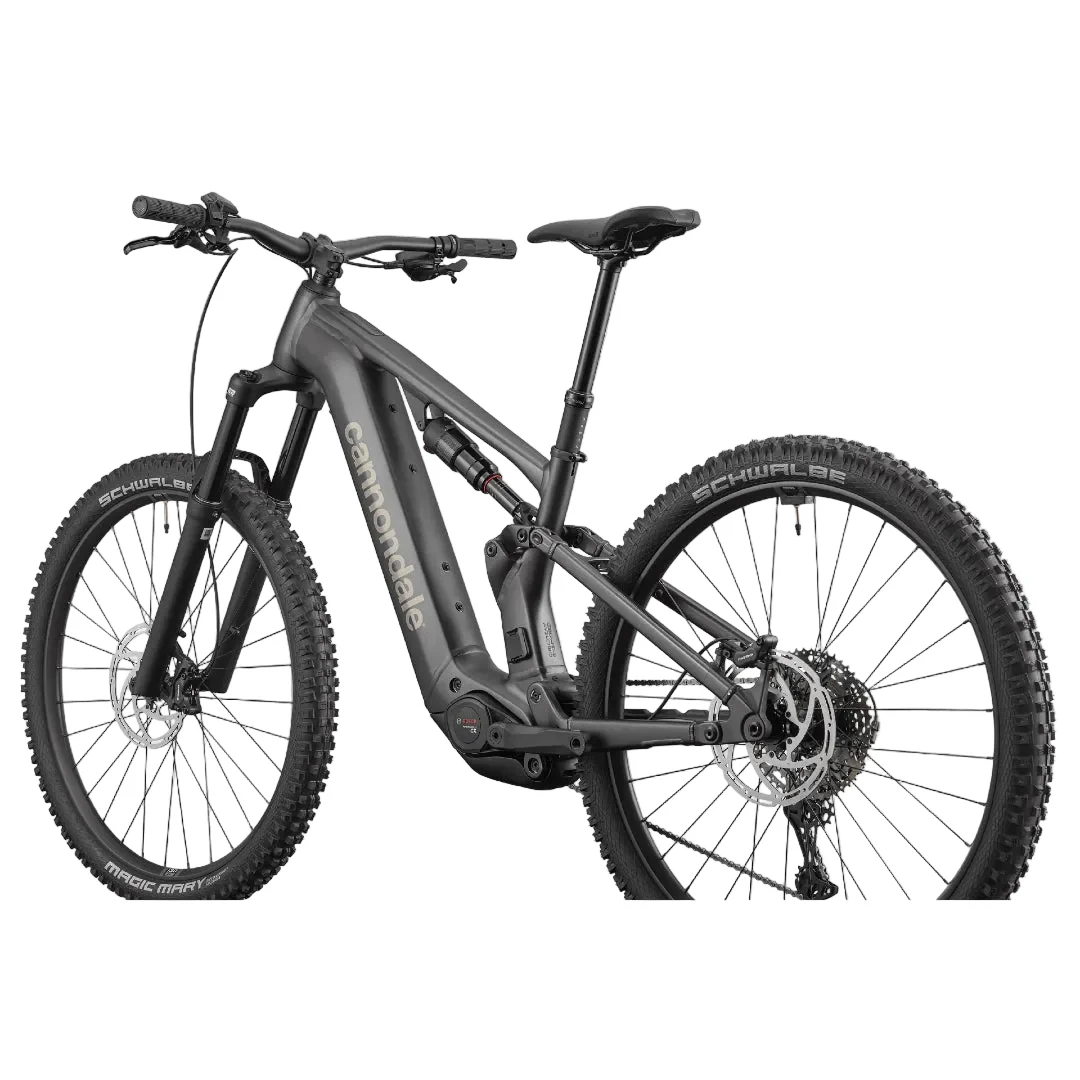

Moterra 4+
More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Moterra 4+ is built for big days. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and largest 800Wh battery deliver smooth, sustained power with massive range. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.
What it's for: Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
- Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
- Massive 800Wh battery delivers big range for big rides
- Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
- Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
Specifications
| Frameset | Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5"–1.8" tapered headtube, kickstand compatible, integrated rear rack and fender mounts |
| Fork | SR Suntour Zeron 36-X Boost, 160mm travel, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Rear Shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230 × 62.5mm |

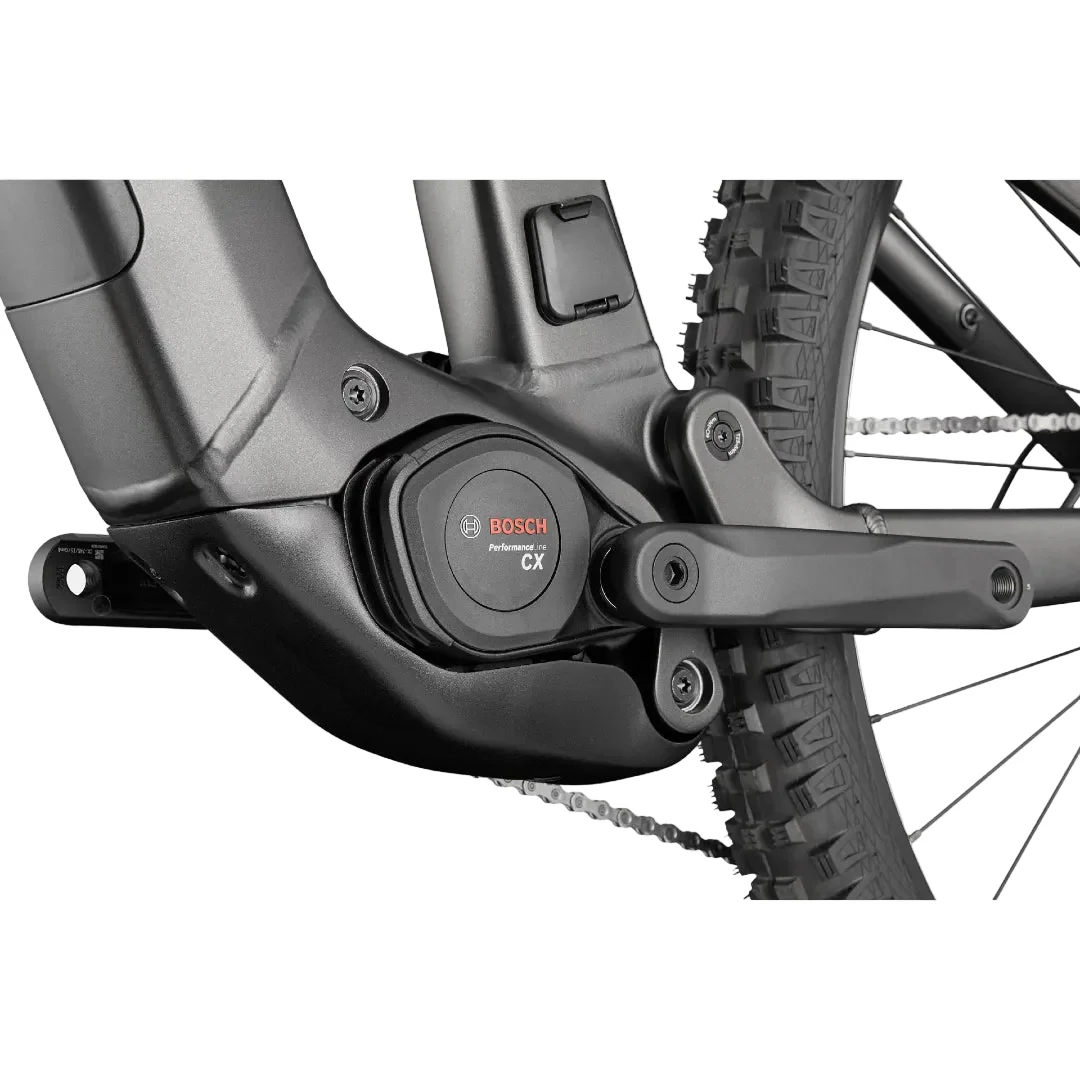

| Drive Unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube 800Wh |
| Charger | Bosch 4A |
| Display | Bosch LED Remote |
| Rear Derailleur | Shimano CUES U6000, LinkGlide |
| Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Crankset | FSA Bosch E-bike, 160mm, 34T, 55mm chainline |
| Cassette | Shimano CUES LG400, LinkGlide, 11-50T, 11-speed |
| Brakes | Tektro Gemini SL 4-piston hydraulic disc, 203mm rotors |
| Brake Levers | Tektro Gemini SL hydraulic disc |
| Rims | WTB ST i30 TCS, 30mm internal width, 32h, tubeless compatible |
| Spokes | DT Swiss Champion 2.0 |
| Front Hub | Shimano TC500, 15x110mm thru-axle, Center Lock |
| Rear Hub | Shimano TC500, 12x148mm thru-axle, Center Lock |
| Wheel Size | 29" |
| Tire Size | 2.4" |
| Tires | Schwalbe Magic Mary Performance, 29 × 2.4", Addix, foldable |

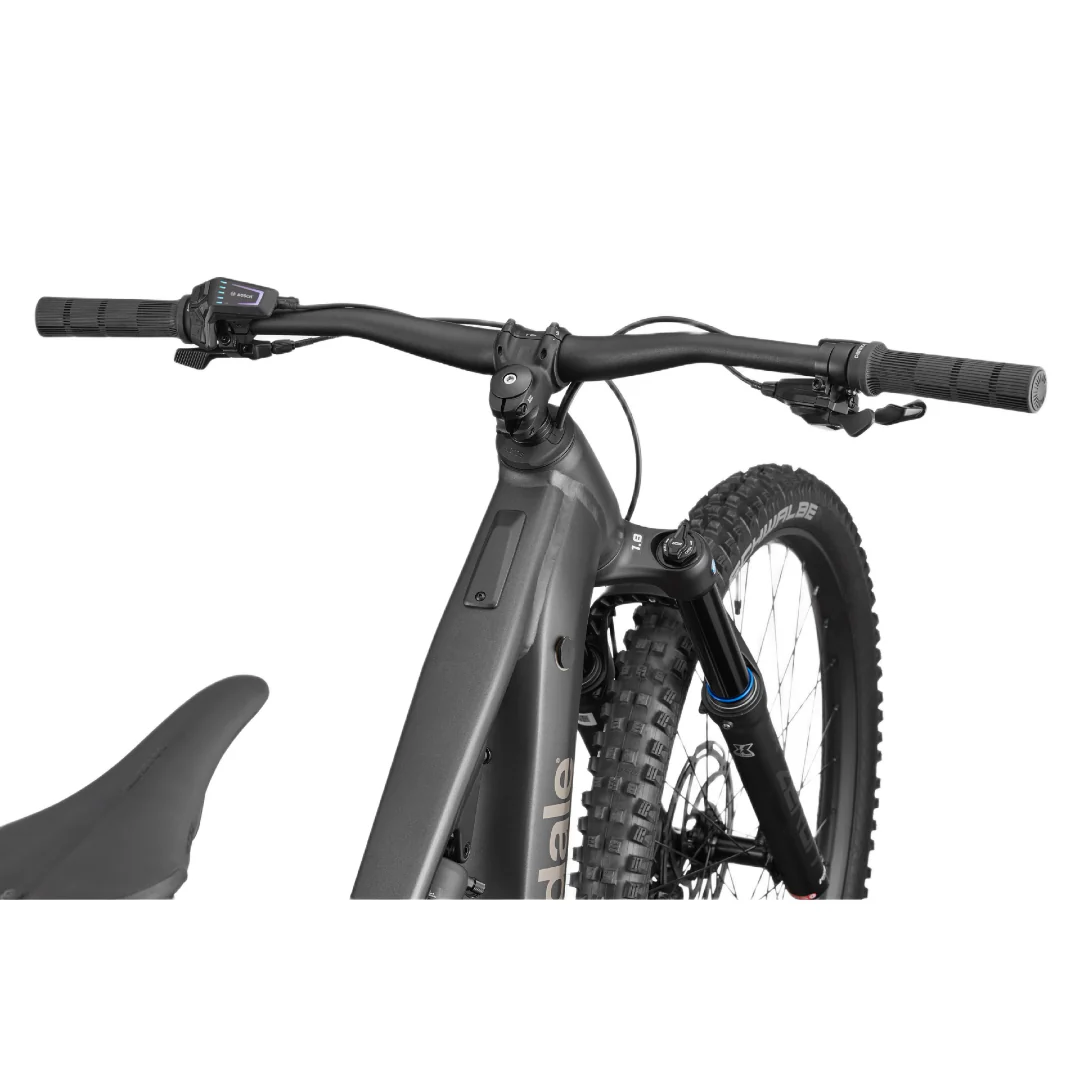

| Handlebar | Cannondale 3 Riser, 6061 Alloy, 800mm width, 25mm rise |
| Stem | Cannondale 1, 6061 Alloy, 40mm length, 35.0 clamp |
| Grips | Cannondale TaperRidge |
| Saddle | WTB Silverado Medium |
| Seatpost | Cannondale DownLow Dropper, internal routing, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Range Extender Compatibility | Bosch PowerMore compatible |
More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Moterra 4+ is built for big days. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and largest 800Wh battery deliver smooth, sustained power with massive range. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.
What it's for: Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
- Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
- Massive 800Wh battery delivers big range for big rides
- Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
- Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
Specifications
| Frameset | Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5"–1.8" tapered headtube, kickstand compatible, integrated rear rack and fender mounts |
| Fork | SR Suntour Zeron 36-X Boost, 160mm travel, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Rear Shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230 × 62.5mm |
| Drive Unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube 800Wh |
| Charger | Bosch 4A |
| Display | Bosch LED Remote |
| Rear Derailleur | Shimano CUES U6000, LinkGlide |
| Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Crankset | FSA Bosch E-bike, 160mm, 34T, 55mm chainline |
| Cassette | Shimano CUES LG400, LinkGlide, 11-50T, 11-speed |
| Brakes | Tektro Gemini SL 4-piston hydraulic disc, 203mm rotors |
| Brake Levers | Tektro Gemini SL hydraulic disc |
| Rims | WTB ST i30 TCS, 30mm internal width, 32h, tubeless compatible |
| Spokes | DT Swiss Champion 2.0 |
| Front Hub | Shimano TC500, 15x110mm thru-axle, Center Lock |
| Rear Hub | Shimano TC500, 12x148mm thru-axle, Center Lock |
| Wheel Size | 29" |
| Tire Size | 2.4" |
| Tires | Schwalbe Magic Mary Performance, 29 × 2.4", Addix, foldable |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 800mm width, 25mm rise |
| Stem | Cannondale 1, 6061 Alloy, 40mm length, 35.0 clamp |
| Grips | Cannondale TaperRidge |
| Saddle | WTB Silverado Medium |
| Seatpost | Cannondale DownLow Dropper, internal routing, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Range Extender Compatibility | Bosch PowerMore compatible |
