40-Series Headset ZS56/28.6 - ZS56/40

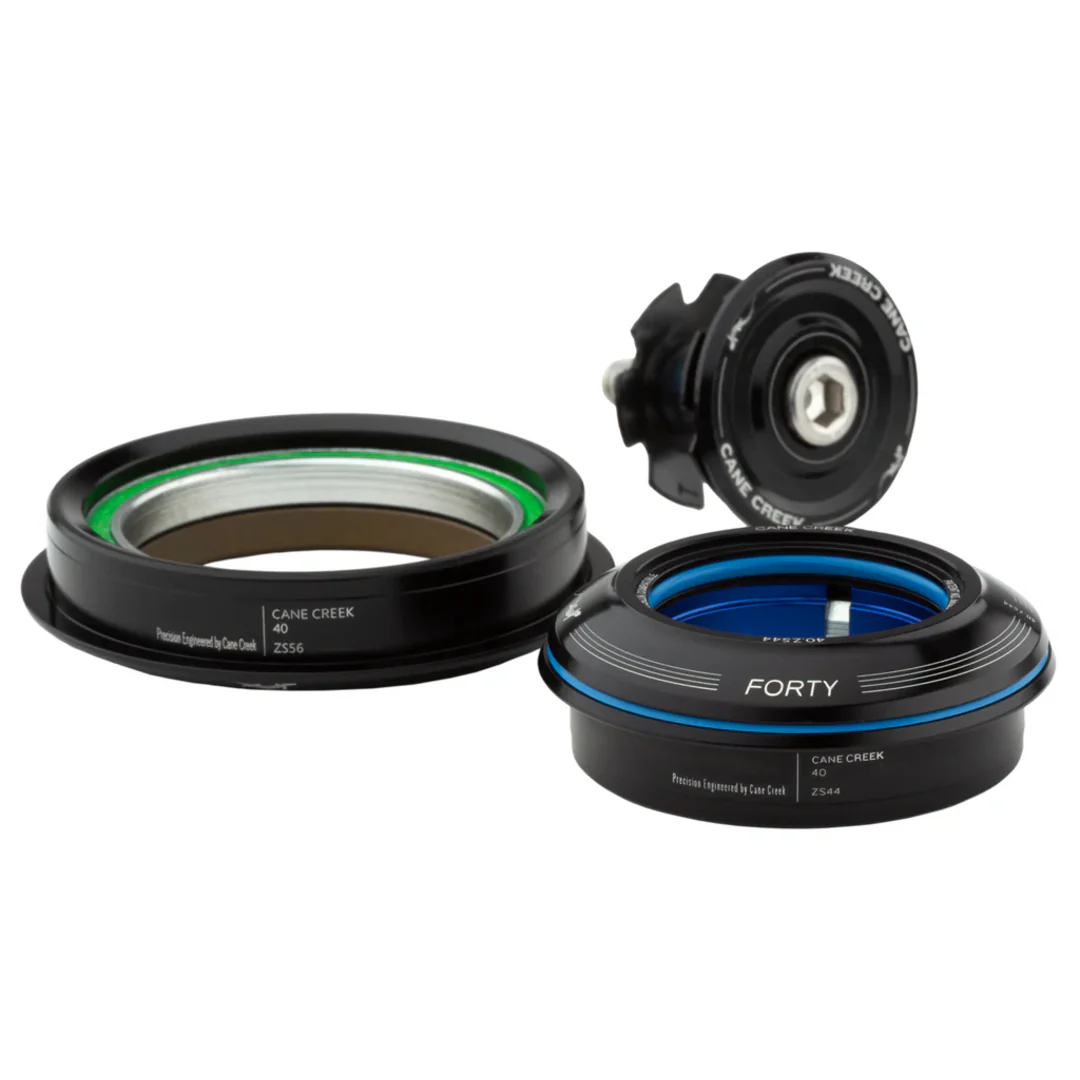

Product image 1

40-Series Headset ZS56/28.6 - ZS56/40

An affordable headset that still offers quality far beyond that of many stock headsets. Forty draws from the premium 110 Series design, including all the features necessary for a durable, quiet, and secure headset. For nearly 15 years, Forty headsets have been trusted by tens of thousands of riders worldwide and are often the standard by which other headsets are judged.

Highlights:

  • Easily replaceable, sealed cartridge bearings

  • 6000 series alloy cups and materials

  • Sealed steel crown race

  • ZN40 Bearings provide good corrosion resistance

  • Precision engineered by Cane Creek in Fletcher, NC

Specifications

  • Cups and Covers: 6061 T-6 Aluminum Internally relieved to reduce weight
  • Covers: Tall and short aluminum and carbon covers offered on many IS and ZS models
  • Crown Race: Durable steel crown races
  • Bearings: Dependable zinc coated, sealed bearings
    • EC30 will take a 38mm bearing
    • EC34 will take a 41mm bearing
    • ZS44 will take a 41mm bearing
    • ZS49 will take a 41mm bearing
    • EC44/40 will take a 52mm bearing
    • EC44/33 will take a 47mm bearing
    • EC49 will take a 52mm bearing
    • ZS56 will take a 52mm bearing
    • ZS62 will take a 52mm bearing
    • IS41 will take a 41mm bearing
    • IS42 will take a 42mm bearing
    • IS52 will take a 52mm bearing
  • All complete Cane Creek headset assemblies (top or bottom) will use a 36×45 degree contact angle bearing, with the exception of our IS47/33 and EC44/33 headset assemblies. IS47/33 and EC44/33 will use a 45×45 degree contact angle bearing.
  • Interlok®: Interlok® spacer compatible
  • Clip Seal: Innovative Clip-Seal completely seals the top assembly and captures the compression ring to reduce the number of loose parts
  • Face Seal: High-quality, low friction face seals on the crown races
  • Stack Heights: External Cup (EC) — 16mm top, 12mm bottom, ZeroStack (ZS) — 8mm or 15mm top, 4mm bottom, Integrated (IS) — 9mm or 15mm top, 1mm bottom
  • What's Included: All complete headset assemblies include top cap, preload bolt, top cover, compression ring, bearings, crown race, and cups (if applicable). These headsets do not include a star nut.

An affordable headset that still offers quality far beyond that of many stock headsets. Forty draws from the premium 110 Series design, including all the features necessary for a durable, quiet, and secure headset. For nearly 15 years, Forty headsets have been trusted by tens of thousands of riders worldwide and are often the standard by which other headsets are judged.

Highlights:

  • Easily replaceable, sealed cartridge bearings

  • 6000 series alloy cups and materials

  • Sealed steel crown race

  • ZN40 Bearings provide good corrosion resistance

  • Precision engineered by Cane Creek in Fletcher, NC

Specifications

  • Cups and Covers: 6061 T-6 Aluminum Internally relieved to reduce weight
  • Covers: Tall and short aluminum and carbon covers offered on many IS and ZS models
  • Crown Race: Durable steel crown races
  • Bearings: Dependable zinc coated, sealed bearings
    • EC30 will take a 38mm bearing
    • EC34 will take a 41mm bearing
    • ZS44 will take a 41mm bearing
    • ZS49 will take a 41mm bearing
    • EC44/40 will take a 52mm bearing
    • EC44/33 will take a 47mm bearing
    • EC49 will take a 52mm bearing
    • ZS56 will take a 52mm bearing
    • ZS62 will take a 52mm bearing
    • IS41 will take a 41mm bearing
    • IS42 will take a 42mm bearing
    • IS52 will take a 52mm bearing
  • All complete Cane Creek headset assemblies (top or bottom) will use a 36×45 degree contact angle bearing, with the exception of our IS47/33 and EC44/33 headset assemblies. IS47/33 and EC44/33 will use a 45×45 degree contact angle bearing.
  • Interlok®: Interlok® spacer compatible
  • Clip Seal: Innovative Clip-Seal completely seals the top assembly and captures the compression ring to reduce the number of loose parts
  • Face Seal: High-quality, low friction face seals on the crown races
  • Stack Heights: External Cup (EC) — 16mm top, 12mm bottom, ZeroStack (ZS) — 8mm or 15mm top, 4mm bottom, Integrated (IS) — 9mm or 15mm top, 1mm bottom
  • What's Included: All complete headset assemblies include top cap, preload bolt, top cover, compression ring, bearings, crown race, and cups (if applicable). These headsets do not include a star nut.
$25.94

Original: $74.12

-65%
40-Series Headset ZS56/28.6 - ZS56/40—

$74.12

$25.94

Description

An affordable headset that still offers quality far beyond that of many stock headsets. Forty draws from the premium 110 Series design, including all the features necessary for a durable, quiet, and secure headset. For nearly 15 years, Forty headsets have been trusted by tens of thousands of riders worldwide and are often the standard by which other headsets are judged.

Highlights:

  • Easily replaceable, sealed cartridge bearings

  • 6000 series alloy cups and materials

  • Sealed steel crown race

  • ZN40 Bearings provide good corrosion resistance

  • Precision engineered by Cane Creek in Fletcher, NC

Specifications

  • Cups and Covers: 6061 T-6 Aluminum Internally relieved to reduce weight
  • Covers: Tall and short aluminum and carbon covers offered on many IS and ZS models
  • Crown Race: Durable steel crown races
  • Bearings: Dependable zinc coated, sealed bearings
    • EC30 will take a 38mm bearing
    • EC34 will take a 41mm bearing
    • ZS44 will take a 41mm bearing
    • ZS49 will take a 41mm bearing
    • EC44/40 will take a 52mm bearing
    • EC44/33 will take a 47mm bearing
    • EC49 will take a 52mm bearing
    • ZS56 will take a 52mm bearing
    • ZS62 will take a 52mm bearing
    • IS41 will take a 41mm bearing
    • IS42 will take a 42mm bearing
    • IS52 will take a 52mm bearing
  • All complete Cane Creek headset assemblies (top or bottom) will use a 36×45 degree contact angle bearing, with the exception of our IS47/33 and EC44/33 headset assemblies. IS47/33 and EC44/33 will use a 45×45 degree contact angle bearing.
  • Interlok®: Interlok® spacer compatible
  • Clip Seal: Innovative Clip-Seal completely seals the top assembly and captures the compression ring to reduce the number of loose parts
  • Face Seal: High-quality, low friction face seals on the crown races
  • Stack Heights: External Cup (EC) — 16mm top, 12mm bottom, ZeroStack (ZS) — 8mm or 15mm top, 4mm bottom, Integrated (IS) — 9mm or 15mm top, 1mm bottom
  • What's Included: All complete headset assemblies include top cap, preload bolt, top cover, compression ring, bearings, crown race, and cups (if applicable). These headsets do not include a star nut.
