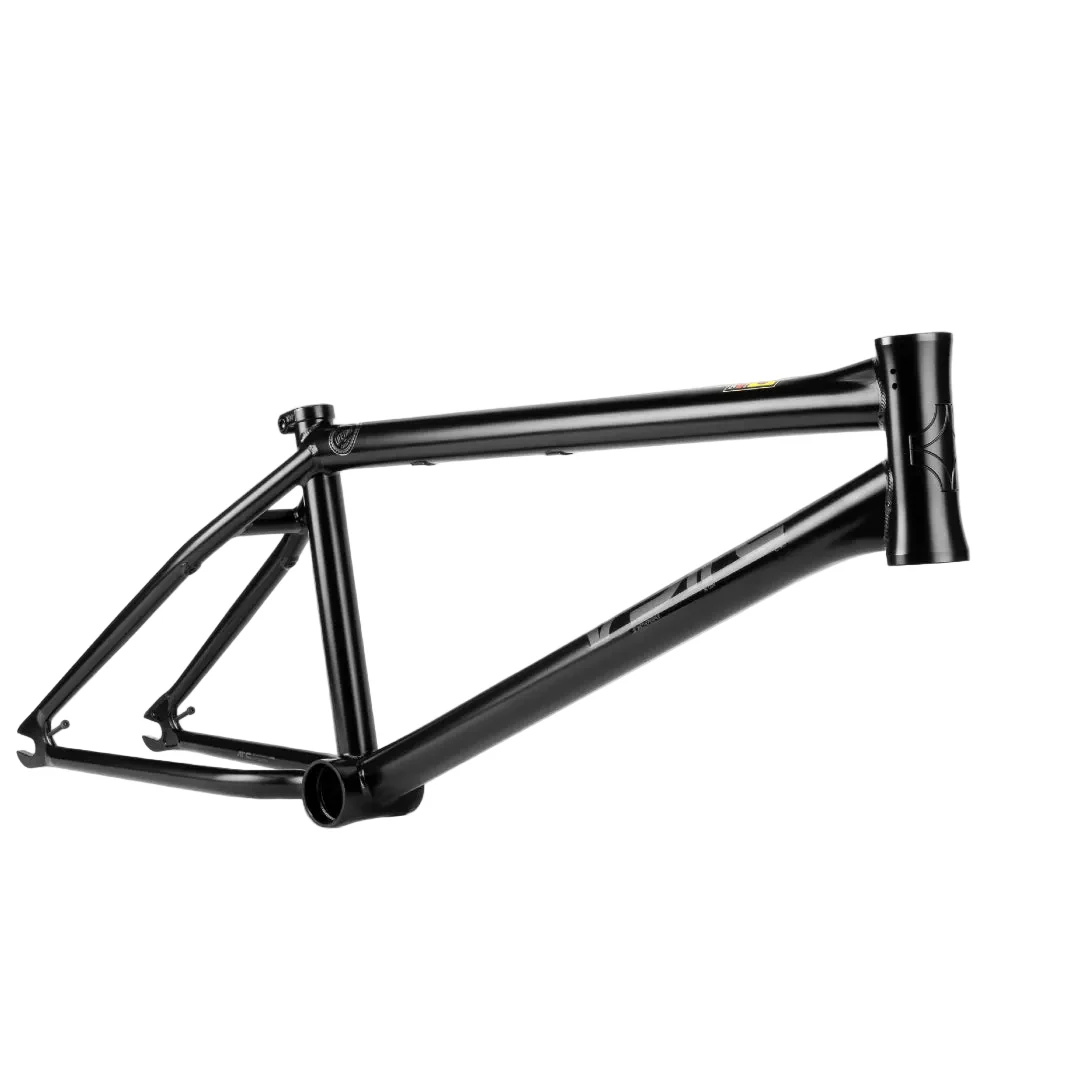

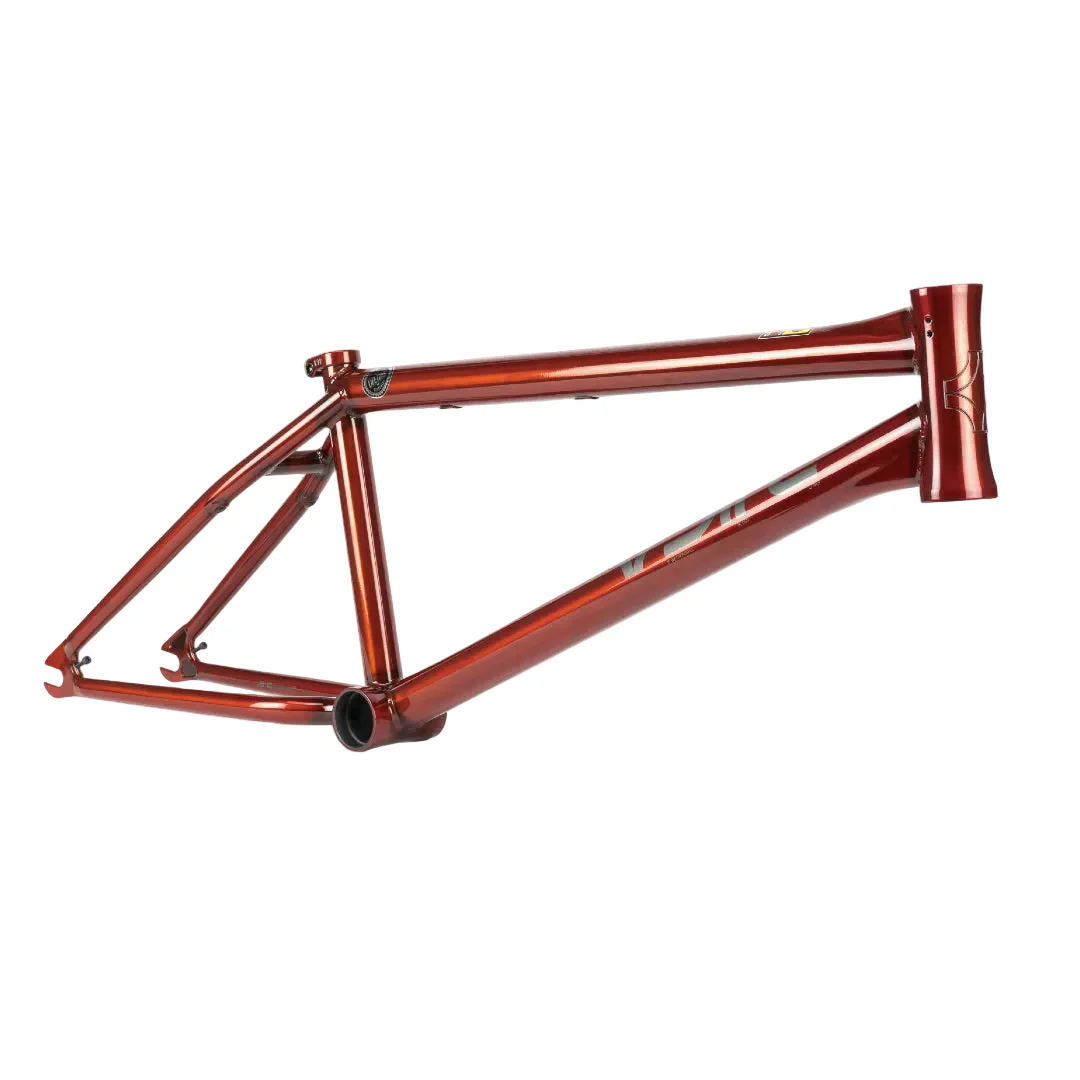

Arc Murray Loubser Signature BMX Frame
Designed in collaboration with new-school tech powerhouse Murray Loubser, the all-new Wethepeople ARC Frame is a true embodiment of style, precision, and innovation. Built to tackle the streets and beyond, this frame represents a seamless blend of strength and agility, just like Murray's unique riding style. Blending the geometry and features of Murray’s favourite Wethepeople frames, the ARC Frame uses a shorter wheelbase and slacker seat tube angle to create a bike that is as nimble as it is tough. With meticulous attention to detail, the ARC Frame incorporates reinforced hydroformed tubing, thicker dropouts, and subtle CNC artwork, ensuring durability without sacrificing the sleek, streamlined appearance. A true representation of the progression of street riding.
Specifications
| Tubing | Butted Japanese Seamless 4130 Chromoly Steel |
| Bottom Bracket | 74mm Mid Size, Offset CNC Machined, Heat-Treated |
| Head Tube | 127mm CNC Machined, Heat-Treated, Integrated Headset, Holes for Rotor Tabs |
| Dropouts | 7.5mm Investment Cast, Integrated Chain Tensioners, Heat-Treated 4130 Chromoly, Peg & Hub Guard Compatible |
| Brakes | Brakeless Frame |
| Geometry | Short 12.75" Chainstays, 76.1° Head Tube Angle, 70° Seat Tube Angle |
| Intended Use | Technical Street BMX (Murray Loubser Signature Frame) |
| Down Tube | Hydroformed for Strength & Stiffness |
| Top Tube | Extra Thick Double-Butted |
| Seat Stay Bridge | CNC Detailed |
| Chain Stay Braces | Box Section for Increased Stiffness |
| Chain Stays | Ovalized for Tire & Sprocket Clearance |
| Rear Triangle | Wider Design for Up to 2.5" Tire Clearance |
| Head Tube Welding | Larger 1.8mm Welds |
| Dropout Design | Smaller Shape for Peg Clearance & Smoother Grinds |
| Seat Clamp | Investment Cast |
| Weight | 2.54 kg (5.59 lb) – 20.75" Frame |
| Colors | Translucent Brown / Matte Indigo / Black |
