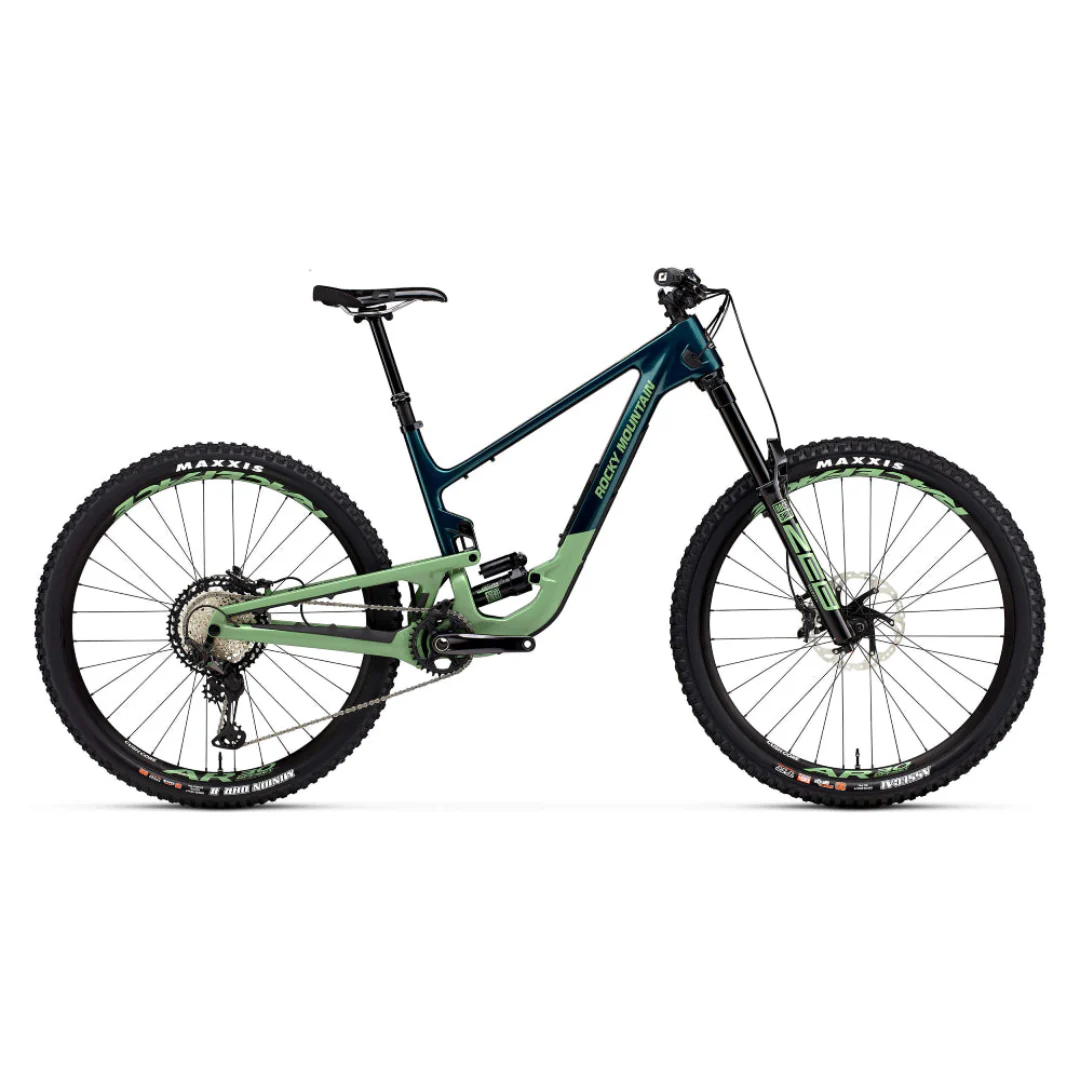

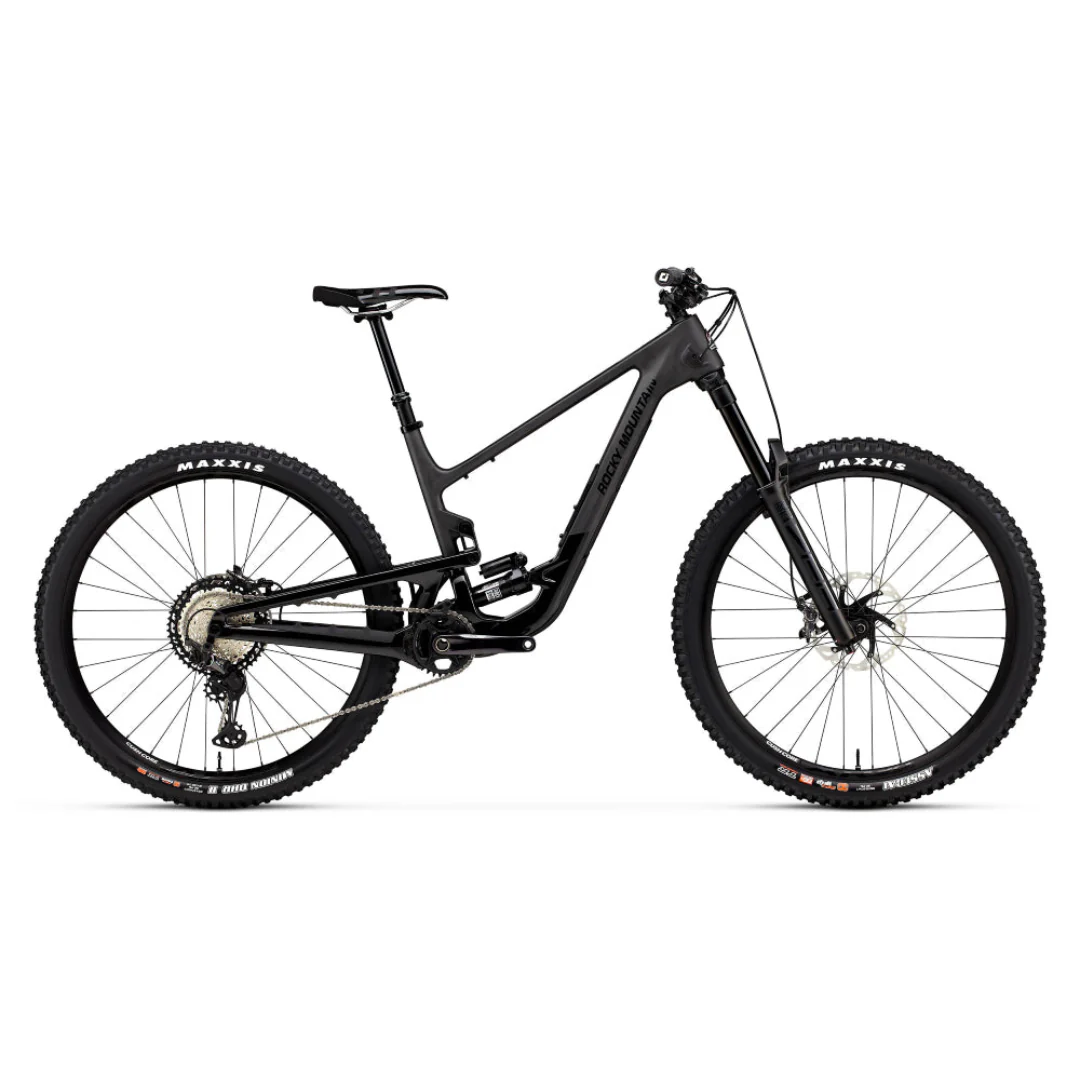

Altitude C70
The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
Intended use: Enduro
Rear travel: 160
Specifications
| Frame | SMOOTHWALL™ Carbon Front & Rear Triangle, Full Sealed Cartridge Bearings, BSA Bottom Bracket, Internal Cable Routing, 2-Bolt ISCG05 Tabs, RIDE-4™ Adjustable Geometry, 160mm Travel |
| Fork | RockShox Zeb Select+ RC2, 170mm, 44mm Offset |
| Front Travel | 170mm |
| Rear Shock | RockShox Super Deluxe Ultimate HBO, Sealed Bearing Eyelet, 40x10mm F Hardware, SM: 210x55mm, MD-LG-XL: 230x60mm, Size-Specific Tune in FAQ |
| Rear Travel | 160mm |
| Headset | FSA Orbit NO.85 Reach Adjust, Sealed Stainless 36°x45° Bearings, 0mm Cups Installed, +/- 5mm Cups Included, Upper: 30.2 x 41 x 7.1mm, Lower: 40 x 51.8 x 7.5mm, 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM, 5° Rise, All Sizes = 40mm |
| Handlebar | Race Face Turbine, 780mm Width, 35mm Rise, 8° Backsweep, 5° Upsweep, 40mm Clamp |
| Grips | ODI Elite Pro Lock-On |
| Brakes | Shimano XT Trail 4-Piston, Metal Pads |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cranks & Chainring | Shimano XT, 32T, 24mm Spindle, SM: 165mm, MD-LG-XL: 170mm |
| Bottom Bracket | Shimano Threaded BBMT501-B |
| Cassette | Shimano XT, 10-51T |
| Chain | Shimano M8100 |
| Front Hub | Rocky Mountain SL Sealed Boost 15mm |
| Rear Hub | DT Swiss 370 Boost 148mm, 18T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Rims | Race Face AR 30, 32H, Tubeless Ready (Tape/Valves Included) |
| Front Tire | Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+, Tubeless Ready |
| Rear Tire | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD, Tubeless Ready |
| Tire Inserts | CushCore Trail, Lightweight, Tire & Rim Protection |
| Seatpost | Race Face Turbine R (by Fox) Dropper, 30.9mm, SM: 125mm, MD: 150mm, LG: 175mm, XL: 200mm |
| Saddle | WTB Volt Race 142 |
| Weight | 33.7 lbs / 15.3 kg |
| Notes | Specs & prices subject to change without notice |
The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
Intended use: Enduro
Rear travel: 160
Specifications
| Frame | SMOOTHWALL™ Carbon Front & Rear Triangle, Full Sealed Cartridge Bearings, BSA Bottom Bracket, Internal Cable Routing, 2-Bolt ISCG05 Tabs, RIDE-4™ Adjustable Geometry, 160mm Travel |
| Fork | RockShox Zeb Select+ RC2, 170mm, 44mm Offset |
| Front Travel | 170mm |
| Rear Shock | RockShox Super Deluxe Ultimate HBO, Sealed Bearing Eyelet, 40x10mm F Hardware, SM: 210x55mm, MD-LG-XL: 230x60mm, Size-Specific Tune in FAQ |
| Rear Travel | 160mm |
| Headset | FSA Orbit NO.85 Reach Adjust, Sealed Stainless 36°x45° Bearings, 0mm Cups Installed, +/- 5mm Cups Included, Upper: 30.2 x 41 x 7.1mm, Lower: 40 x 51.8 x 7.5mm, 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM, 5° Rise, All Sizes = 40mm |
| Handlebar | Race Face Turbine, 780mm Width, 35mm Rise, 8° Backsweep, 5° Upsweep, 40mm Clamp |
| Grips | ODI Elite Pro Lock-On |
| Brakes | Shimano XT Trail 4-Piston, Metal Pads |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cranks & Chainring | Shimano XT, 32T, 24mm Spindle, SM: 165mm, MD-LG-XL: 170mm |
| Bottom Bracket | Shimano Threaded BBMT501-B |
| Cassette | Shimano XT, 10-51T |
| Chain | Shimano M8100 |
| Front Hub | Rocky Mountain SL Sealed Boost 15mm |
| Rear Hub | DT Swiss 370 Boost 148mm, 18T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Rims | Race Face AR 30, 32H, Tubeless Ready (Tape/Valves Included) |
| Front Tire | Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+, Tubeless Ready |
| Rear Tire | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD, Tubeless Ready |
| Tire Inserts | CushCore Trail, Lightweight, Tire & Rim Protection |
| Seatpost | Race Face Turbine R (by Fox) Dropper, 30.9mm, SM: 125mm, MD: 150mm, LG: 175mm, XL: 200mm |
| Saddle | WTB Volt Race 142 |
| Weight | 33.7 lbs / 15.3 kg |
| Notes | Specs & prices subject to change without notice |
Original: $4,588.71
-65%$4,588.71
$1,606.05Description
The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
Intended use: Enduro
Rear travel: 160
Specifications
| Frame | SMOOTHWALL™ Carbon Front & Rear Triangle, Full Sealed Cartridge Bearings, BSA Bottom Bracket, Internal Cable Routing, 2-Bolt ISCG05 Tabs, RIDE-4™ Adjustable Geometry, 160mm Travel |
| Fork | RockShox Zeb Select+ RC2, 170mm, 44mm Offset |
| Front Travel | 170mm |
| Rear Shock | RockShox Super Deluxe Ultimate HBO, Sealed Bearing Eyelet, 40x10mm F Hardware, SM: 210x55mm, MD-LG-XL: 230x60mm, Size-Specific Tune in FAQ |
| Rear Travel | 160mm |
| Headset | FSA Orbit NO.85 Reach Adjust, Sealed Stainless 36°x45° Bearings, 0mm Cups Installed, +/- 5mm Cups Included, Upper: 30.2 x 41 x 7.1mm, Lower: 40 x 51.8 x 7.5mm, 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM, 5° Rise, All Sizes = 40mm |
| Handlebar | Race Face Turbine, 780mm Width, 35mm Rise, 8° Backsweep, 5° Upsweep, 40mm Clamp |
| Grips | ODI Elite Pro Lock-On |
| Brakes | Shimano XT Trail 4-Piston, Metal Pads |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cranks & Chainring | Shimano XT, 32T, 24mm Spindle, SM: 165mm, MD-LG-XL: 170mm |
| Bottom Bracket | Shimano Threaded BBMT501-B |
| Cassette | Shimano XT, 10-51T |
| Chain | Shimano M8100 |
| Front Hub | Rocky Mountain SL Sealed Boost 15mm |
| Rear Hub | DT Swiss 370 Boost 148mm, 18T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Rims | Race Face AR 30, 32H, Tubeless Ready (Tape/Valves Included) |
| Front Tire | Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+, Tubeless Ready |
| Rear Tire | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD, Tubeless Ready |
| Tire Inserts | CushCore Trail, Lightweight, Tire & Rim Protection |
| Seatpost | Race Face Turbine R (by Fox) Dropper, 30.9mm, SM: 125mm, MD: 150mm, LG: 175mm, XL: 200mm |
| Saddle | WTB Volt Race 142 |
| Weight | 33.7 lbs / 15.3 kg |
| Notes | Specs & prices subject to change without notice |
